The LOY-DALI-SBM1 is a DALI module for controlling sunblinds. The device is bus powered and comes with 2 built-in relay contacts, which are suitable to switch currents of up to 6A at 250 V AC or 30 V DC.
The device provides 2 operating modes:
The Sunblind-Mode (manufacturer specific operating mode 0x80) is well suited for sunblind control due to an extended command set that includes direction and duration information for the blinds connected to the relay outputs. On LOYTEC controllers the device is automatically configured to be used in this mode.

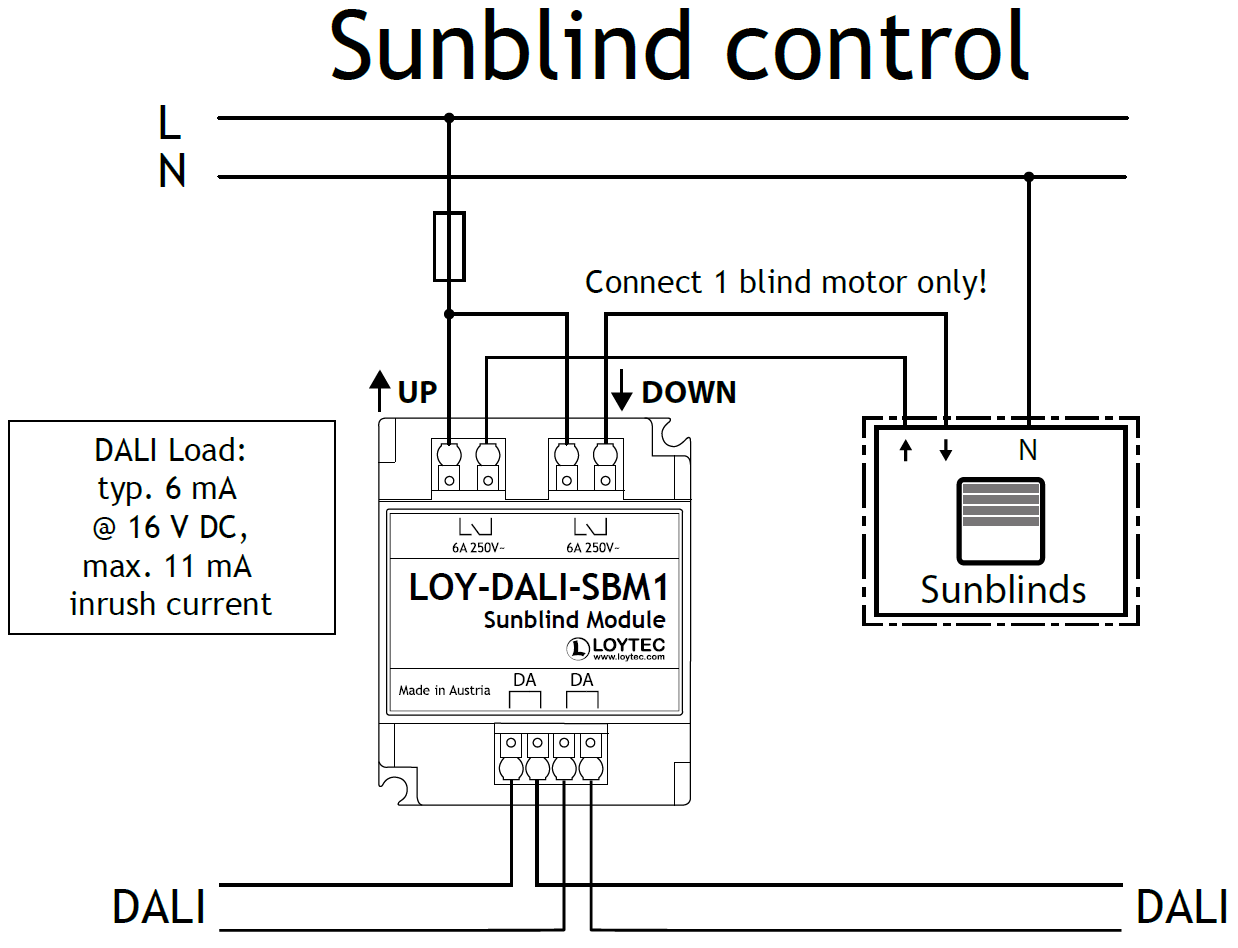

The LOY-DALI-SBM1 is suited to control a single sunblind-motor.
In Relay-Mode (operating mode 0x00) the module acts as DALI‑2 certified relay module with 2 interlocked contacts: normally open and normally closed.
