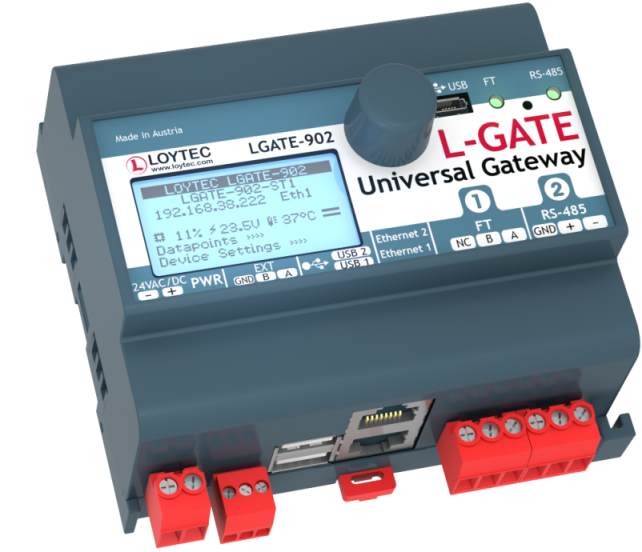

The LGATE-902 Gateway is a powerful gateway that can host user specific graphical pages. The gateways provide connectivity functions to concurrently integrate CEA-709 (LonMark Systems), BACnet, KNX, Modbus, and M-Bus. Local operation and override is provided by the built-in jog dial and the backlit display (128x64 pixels). Device and data point information is provided by the Web interface and shown on the display via symbols and in text format.

LonMark Systems can be integrated via IP-852 (Ethernet/‌IP) or TP/‌FT‑10. LGATE-902 features an integrated Remote Network Interface (RNI) to access the TP/‌FT‑10 channel on the device via Ethernet/‌IP. BACnet integration is supported through BACnet/‌IP (Ethernet/‌IP) or BACnet MS/‌TP (RS-485). LGATE-902 ist BACnet Building Controller (B-BC) BTL certified and can be configured to be a BBMD.

In addition, the gateway provides connectivity to KNXnet/‌IP and Modbus (RTU/ASCII, TCP, Master or Slave). M-Bus and KNX TP1 device integration needs optional interface modules.

Through the built-in web server, all data points can be monitored and changed. The gateway functionality allows data communication between all communication technologies available on the device. Different technology data points are mapped through Local Connections on the device. The mapping of different technology data points on distributed devices is supported by Global Connections. The gateway also support Smart Auto-Connect™ – the automatic generation of connections to substantially reduce engineering efforts and cost. Math objects allow to execute mathematical operations on data points. All technology data points are automatically created as OPC XML-DA and OPC UA data points.

The LGATE-902 Gateway is equipped with two Ethernet ports. It can either be configured to use the internal switch to interconnect the two ports or every port is configured to work in a separate IP network.

When the Ethernet ports are configured for two separate IP networks, one port can be connected for instance to a WAN (Wide Area Network) with enabled network security (HTTPS) while the second port can be configure to be connected to an insecure network (LAN) where the standard building automation protocols like BACnet/‌IP, LON/‌IP, or Modbus TCP are present. These devices also feature firewall functionality of course to isolate particular protocols or services between the ports. The built-in VPN function provides for simple VPN setup and secure access to remote sites. The LTE-800 interface enables wireless access to remote sites through a mobile carrier.

Using the internal switch, a daisy chained line topology of up to 20 devices can be built, which reduces costs for network installation. The IP switch also allow the setup of a redundant Ethernet installation (ring topology), which increases reliability. The redundant Ethernet topology is enabled by the Rapid Spanning Tree Protocol (RSTP), which is supported by most managed switches.

The L-GATE devices provide fully featured AST™ functionality (Alarming, Scheduling, and Trending) and can be integrated perfectly into the L-WEB System.

IoT Integration

The IoT function (Node.js) allows connecting the system to almost any cloud service, either for uploading historical data to analytics services, delivering alarm messages to alarm processing services or operating parts of the control system over a cloud service (e.g., scheduling based on Web calendars or booking systems). Processing Internet information such as weather data in forecast-based control is also possible. Finally, the JavaScript kernel also allows implementing serial protocols to non-standard equipment in primary plant control.

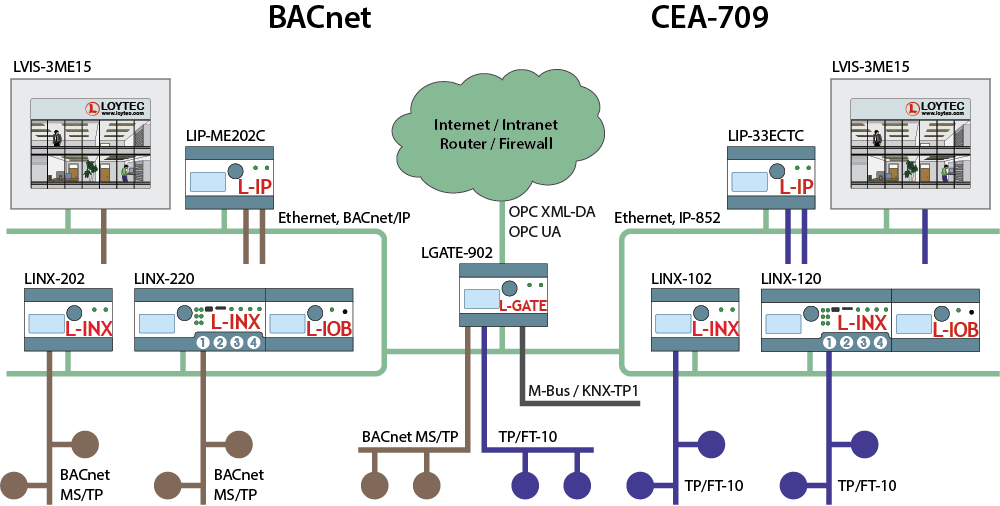

lgate_overview

Features

  • Universal Gateway for BACnet, LonMark, KNX, Modbus, M-Bus, and EnOcean
  • Compliant with ANSI/ASHRAE–135‑2012 and ISO 16484‑5:2012 standard
  • B-BC (BACnet Building Controller) functionality, BTL certified
  • Supports BBMD (BACnet Broadcast Management Device)
  • Supports BACnet MS/‌TP or BACnet/‌IP
  • BACnet Client Function (Write Property, Read Property, COV Subscription)
  • BACnet Client Configuration with configuration tool (scan and EDE import)
  • Compliant with CEA‑709, CEA‑852, and ISO/‌IEC 14908 Standard (LonMark System)
  • Supports TP/‌FT‑10 or IP-852 (Ethernet/‌IP)
  • Support of dynamically created or static NVs
  • Support of user-defined NVs (UNVTs) and Configuration Properties (SCPTs, UCPTs)
  • Remote Network Interface (RNI) with 2 MNI devices
  • Direct connection to KNX/IP, KNX TP1 connection via LKNX-300 Interface
  • M-Bus Master according to EN 13757-3, connection via M-Bus Level Converter (LMBUS-20 or LMBUS-80)
  • Modbus TCP and Modbus RTU/ASCII (Master or Slave)
  • Automatic creation of Local Connections (Smart Auto Connect™)
  • Math objects to execute mathematical operations on data points
  • Automatic mapping of network variables to BACnet objects in accordance with CEN/TS 15231:2005
  • Alarming, Scheduling, and Trending (AST™)
  • Node.js support for easy IoT integration (e.g. Google
    calendar, Alexa & friends, multimedia equipment,…)
  • Event-driven e-mail notification
  • Stores customized graphical pages
  • Visualization of customized graphical pages through LWEB‑900 and LWEB‑802/‌803
  • Built-in OPC XML-DA and OPC UA server
  • Dual switched or separated Ethernet ports
  • Access to network statistics
  • Integrated web server for device configuration and monitoring data points
  • Manual operation using the jog dial or VNC client
  • Local and remote access to information about device status and data points
  • 128x64 graphic display with backlight
  • Configurable via Ethernet/‌IP or TP/FT‑10
  • Connection to EnOcean wireless devices via LENO-80x Interface
  • Supports SMI (Standard Motor Interface) through LSMI-80x
  • Supports WLAN through LWLAN-800 Interface
  • Supports MP-Bus through LMPBUS-804 Interface
  • Supports LTE through LTE-800 Interface
  • Stores user-defined project documentation

Tutorials

Features of L-INX 7.6 Release [LINX 7.6]

This video presents several features of the new firmware.

Using EnOcean devices [G003]

This tutorial describes how to use EnOcean with LOYTEC devices.

How to create schedulers (CEA-709) [A001]

This tutorial describes how to create schedulers on an L-VIS Touch Panel with the configuration tool L-VIS Configurator.

How to create a calendar including exception days (CEA-709) [A002]

This tutorial describes how to create a calendar including exception days on an L-VIS Touch Panel with the configuration tool L-VIS Configurator.

How to operate a scheduler on the web interface of a L-INX Automation Server [A004]

This tutorial describes how to use the Web UI of the L-INX Automation Server.

How to create a remote scheduler (CEA-709) [A005]

This tutorial describes how to create a remote scheduler on the L-INX Automation Server with the configuration tool NL220 LonWorks© Manager.

How to create alarms (CEA-709) [A006]

This tutorial describes how to create alarms on the L-INX Automation Server with the configuration tool L-INX Configurator.

How to use e-mail configuration [A007]

This tutorial describes how to configure the L-INX Automation Server with the configuration tool L-INX Configurator.

How to create trend objects [A008]

This tutorial describes how to create trend objects on the L-INX Automation Server with the configuration tool L-INX Configurator.

How to create schedulers on BACnet devices [A201]

This tutorial describes how to create schedulers on BACnet devices on the L-INX Automation Server with the configuration tool L-INX Configurator.

How to create a calendar on BACnet devices [A202]

This tutorial describes how to create a calendar on the L-INX Automation Server with the configuration tool L-INX Configurator.

How to create a remote scheduler on BACnet devices [A205]

This tutorial describes how to create a remote scheduler on the L-INX Automation Server with the configuration tool L-INX Configurator.

How to create alarms on BACnet devices [A206]

This tutorial describes how to create alarms on the L-INX Automation Server with the configuration tool L-INX Configurator.

How to create static network variables [B001]

This tutorial describes how to create static network variables on the L-INX Automation Server with the configuration tool L-INX Configurator.

How to create dynamic network variables [B002]

This tutorial describes how to create dynamic network variables on the L-INX Automation Server with the configuration tool NL220 LonWorks© Manager.

How to create network variables by using LNS scan [B003]

This tutorial describes how to create network variables by using LNX scan on the L-INX Automation Server with the configuration tool L-INX Configurator.

How to create network variables by using network scan [B004]

This tutorial describes how to create network variables by using network scan on the L-INX Automation Server with the configuration tool L-INX Configurator.

How to import network variables by using CSV file import [B005]

This tutorial describes how to import network variables by using CSV file import on the L-INX Automation Server with the configuration tool L-INX Configurator.

How to import extern network variables (LNS scan or network scan) [B006]

This tutorial describes how to import extern network variables on the L-INX Automation Server with the configuration tool L-INX Configurator.

How to create network variables by using Filter Templates [B007]

This tutorial describes how to create network variables by using Filter Templates on the L-INX Automation Server with the configuration tool L-INX Configurator.

Manual creation of BACnet Server Objects [B201]

This tutorial describes how to create BACnet Server Objects manually on the L-INX Automation Server with the configuration tool L-INX Configurator.

How to create client mappings using network scan [B202]

This tutorial describes how to create client mappings using network scan on the L-INX Automation Server with the configuration tool L-INX Configurator.

How to create client mappings using EDE file import [B203]

This tutorial describes how to configure the L-INX Automation Server with the configuration tool L-INX Configurator.

A quick start scenario creating an L-WEB database [W002]

This tutorial describes how to create a database with the LWEB Server and the configuration tool L-INX Configurator on the example of configuring the L-INX Automation Server.

How to create automatic connections from CEA-709 to BACnet [G001]

This tutorial describes how to create automatic connections on the LGATE-900 Gateway with the configuration tool L-INX Configurator (former L-GATE Configurator).

How to create an L-GATE project from a predefined BACnet side [G002]

This tutorial describes how to create an L-GATE project from a predefined BACnet side on the LGATE-900 Gateway with the configuration tool L-INX Configurator (former L-GATE Configurator).

LGATE-902: Universal Gateway Products

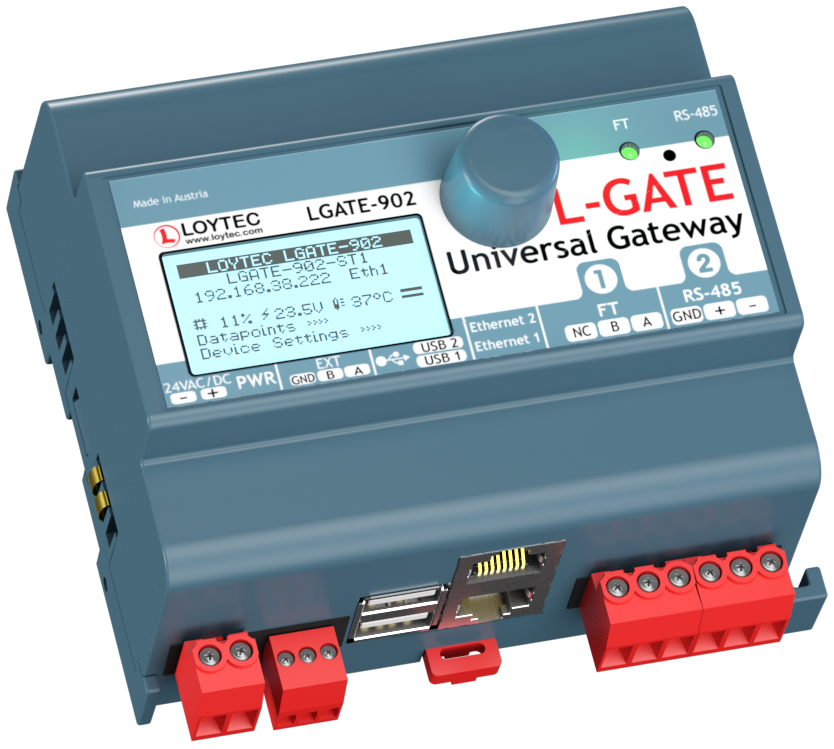

LGATE-902
