LPAD-7 Touch Panels for BACnet, EnOcean, LonMark, Modbus, Bluetooth, OPC XML / DA and OPC UA networks are ideally suited for visualization and operation in building automation. LPAD-7 Touch Panels can be used as room operator panels, network thermostats, room controller with integrated capacitive touch screen for single offices, conference rooms, hotel rooms, cabins on cruise ships and private homes. The L-PAD/L-VIS/L-WEB configurator can be used to customize the pages and create the page navigation. LPAD-7 touch panels run on a powerful quad core CPU with extremely low power consumption. The LPAD-7 is designed for the best possible security measures with regular firmware updates over many years’ lifetime.

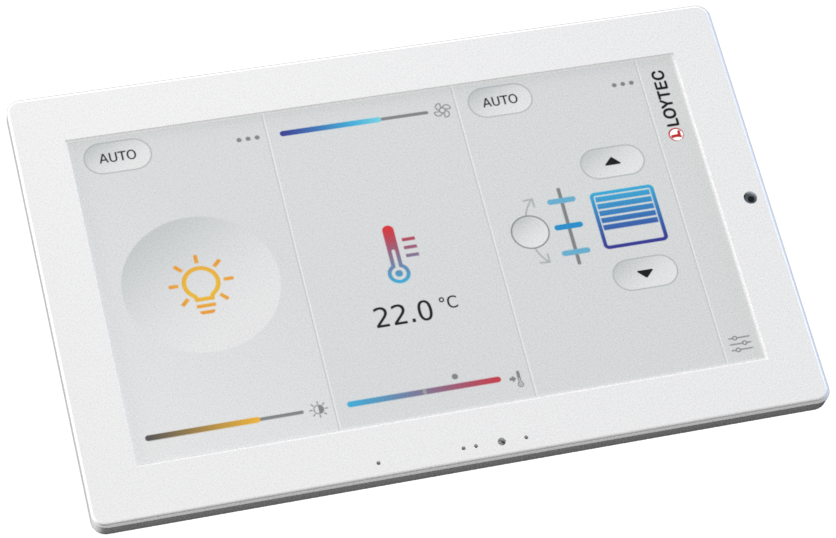

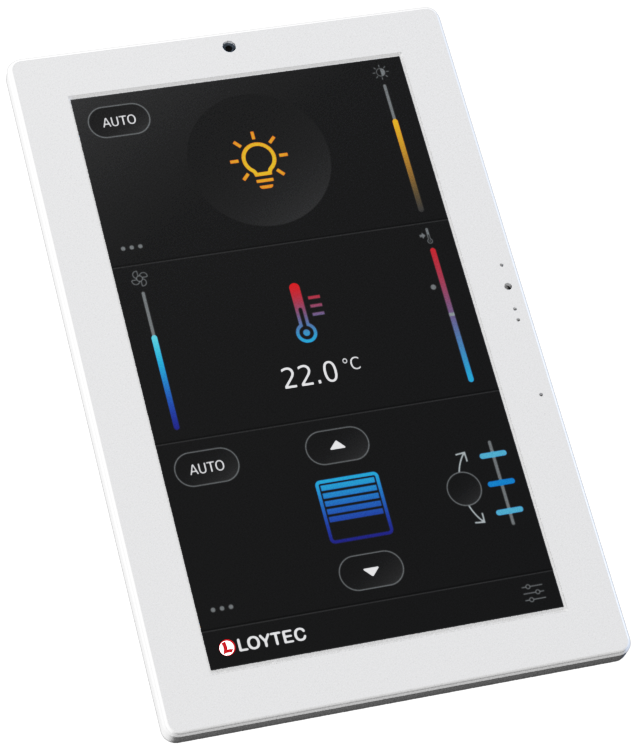

LPAD-7 impresses with its timeless design, harmonic integration into modern and historical architecture, and with its extremely user-friendly concept. The all view IPS display can be mounted horizontally or vertically. With its only 21 mm thickness it can be mounted on wall.
Integrated Sensor
TThe LPAD-7 offers a variety of built-in sensors to measure temperature, humidity, illuminance, and to detect presence. The IR receiver detects commands from an IR remote control. The proximity sensor turns on the back light of the display.
The integrated real-time clock is powered by a rechargeable capacitor and has a ten-day power-reserve.
Playback of Audio Files and Streams
The LPAD-7 integrated sound system plays MP3, WAV, and MP3 streams (for example web radio). The playback will be started or stopped by the respective action object. The action object is linked to one of the available audio files or to the URL of an MP3 stream.
Programming
Some LPAD-7 models can be programmed in IEC 61499 with the L-ROC room automation library or in IEC 61131-3 with the L-STUDIO building automation library. In this configuration the LPAD-7 can act as the room controller and user interface in one device. Wireless sensors and actuators in the room communicate via Bluetooth Mesh with the LPAD-7 room controller.
IoT Integration
The IoT function (Node.js) included in some LPAD-7 models allows connecting the system to almost any cloud service, either for uploading historical data to analytics services, telemetry using MQTT, delivering alarm messages to alarm processing services or operating parts of the control system over a cloud service (e.g., scheduling based on Web calendars or booking systems). Processing Internet information such as weather data in forecast-based control is also possible. Finally, the JavaScript kernel also allows implementing serial protocols to non-standard equipment in primary plant control.
Communication
LPAD-7 communicates OPC XML/DA with L-ROC room controller and the LWEB- 900 building management system.
LPAD-7 communicates with BACnet networks via BACnet/IP, BACnet/SC or BACnet MS/TP. BACnet enabled LPAD-7 Touch Panels implement the BACnet Building Controller (B‑BC) profile and are BTL certified. They include a fully featured built‑in BACnet/IP, BACnet/SC and MS/TP router with BBMD (BACnet Broadcast Management Device) and slave proxy functionality. For BACnet MS/TP communication, an LPAD-7 socket board with RS-485 interface is required.
LPAD-7 Touch Panels communicate with LonMark Systems via IP-852 (Ethernet/ IP) or TP/FT-10 channels. An LPAD7-SOCKET2 or LPAD7-SOCKET2-B is required to enable any kind of LonMark communication on the LPAD-7.
LPAD-7 Touch Panels communicate Modbus either as Master or Slave. For this purpose, Modbus TCP is supported, and Modbus RTU/ASCII is available via the optional socket board with RS‑485 interface (LPAD7-SOCKETx).
An EnOcean option allows integration of EnOcean sensor and actuator devices into the LPAD-7. This option requires the LPAD7-SOCKET3/LPAD7-SOCKET3-B or the LPAD7-SOCKET4/ LPAD7-SOCKET4-B product.
LPAD7-41G2 / LPAD7-41G3 / LPAD7-41G4 provide SIP client support to integrate a camera feed and VolP. This feature enables the LPAD7-41Gx to be used as part of a SIP based door entry intercom system. The SIP client feature is exclusive to LPAD7-41Gx.
Connectivity
LPAD-7 devices are equipped with two Ethernet ports. They can either be configured to use the internal switch to connect the two ports together or every port is configured to work in a separate IP network. The IP switch can also setup an Ethernet ring topology with the RSTP protocol to increase network reliability.
The built-in WiFi interface integrates LPAD-7 devices into an existing WLAN infrastructure.
The Bluetooth feature allows communication with Bluetooth enabled devices in a room.
Power Supply
LPAD-7 Touch Panels can be supplied with 24 V DC through a connector on the mainboard, PoE (IEEE 802.3af ) through one of the Ethernet interfaces, or 24 V AC/DC through a power connector on the LPAD-7 socket board (except for LPAD7-SOCKET0).
Order Information
There are different versions of the LPAD-7 available. Please check the following tables for the various product features. Valid order numbers are:
LPAD7-30G2, LPAD7-31G2, LPAD7-41G2 (G2: black front, white enclosure)
LPAD7-30G3, LPAD7-31G3, LPAD7-41G3 (G3: white front, white enclosure)
LPAD7-30G4, LPAD7-31G4, LPAD7-41G4 (G4: black front, black enclosure)
Every LPAD-7 requires an LPAD7-SOCKETx product that must be ordered separately. Depending on the model these sockets may add communication interfaces and I/O terminals.
Features
- High resolution IPS touch display with dimmable backlight
- Glass front and capacitive touch
- Portrait or landscape mounting
- Device configuration and graphical page creation with the L-PAD/L‑VIS/L-WEB configuration tool free of charge
- Room controller for up to 2 room segments (LPAD7-31Gx and LPAD7-41Gx only)
- Supports all popular graphic file formats such as GIF, JPG, BMP, TIFF, APNG, PNG, MNG, ICO
- Support of SVG vector graphics
- Supports popular font types such as TrueType, Type-1, BDF, PCF, and OTF
- Supports Unicode text and complex writing systems
- Built-in WLAN
- Built-in Bluetooth
- Built-in OPC UA and OPC XML‑DA server
- Built-in OPC XML‑DA client
- Integration of EnOcean sensor and actuator devices
- Alarming, Scheduling, and Trending (AST™)
- Node.js support for easy IoT integration (e.g. Google calendar, MQTT, Alexa & friends, multimedia equipment,…)
- Event-driven e-mail notification
- Math objects to execute mathematical operations on data points
- IEC 61499 / 61131-3 programmable
- Compliant with CEA‑709, CEA‑852, and ISO/ IEC 14908 Standard (LonMark System)
- Supports CEA‑709 TP/ FT‑10 or IP‑852 (Ethernet/ IP)
- Compliant with ANSI/ ASHRAE 135‑2012 and ISO 16484‑5:2012 standard
- Supports BACnet/ IP, BACnet/SC and BACnet MS/ TP
- BACnet Client Function (Write Property, Read Property, COV Subscription)
- BACnet Client Configuration with configuration tool (scan and EDE import)
- B-BC (BACnet Building Controller), BTL certified
- Integrated BACnet/ IP, BACnet/SC to BACnet MS/ TP Router
- BBMD (BACnet Broadcast Management Device)
- Modbus TCP and Modbus RTU/ASCII (Master or Slave)
- Integrated web server for device configuration and monitoring data points
- Access to network statistics
- Configurable via Ethernet/ IP
- Playback of audio files and streams
- PoE Class 3 powered device (IEEE 802.3af )
- Dual Ethernet/ IP interface
- Integrated proximity sensor (TOF)
- Integrated temperature & humidity sensor
- Integrated illuminance sensor
- Integrated IR-sensor
- Integrated real-time clock (10-day power-reserve)
- lntegrated microphone (only LPAD-41Gx)
- SIP client support to integrate a camera feed and VolP (only LPAD-41Gx)
- Supports VPN
LPAD-7 Programmable Touch Panels Products | |
LPAD7-30G2 | |
Touch Panel, Dual Ethernet, WLAN, Bluetooth, proximity sensor, temperature and humidity sensor, illuminance sensor, IR receiver, black front | |
Start quote request Documentation and Software | |
3D View | |
4463887877a447f88ba20816796c8446 | |
LPAD7-30G3 | |
Touch Panel, Dual Ethernet, WLAN, Bluetooth, proximity sensor, temperature and humidity sensor, illuminance sensor, IR receiver, white front | |
Start quote request Documentation and Software | |
3D View | |
a0f915e0ac1d49c396bf7c821fa32c79 | |
LPAD7-30G4 | |
Touch Panel, Dual Ethernet, WLAN, Bluetooth, proximity sensor, temperature and humidity sensor, illuminance sensor, IR receiver, black front, black enclosure (expected availability Q1 2025) | |
Start quote request Documentation and Software | |
LPAD7-31G2 | |
Programmable Touch Panel, Dual Ethernet, WLAN, Bluetooth, proximity sensor, temperature and humidity sensor, illuminance sensor, IR receiver, BACnet, 61499, black front | |
Start quote request Documentation and Software | |
3D View | |
4463887877a447f88ba20816796c8446 | |
LPAD7-31G3 | |
Programmable Touch Panel, Dual Ethernet, WLAN, Bluetooth, proximity sensor, temperature and humidity sensor, illuminance sensor, IR receiver, BACnet, 61499, white front | |
Start quote request Documentation and Software | |
3D View | |
a0f915e0ac1d49c396bf7c821fa32c79 | |
LPAD7-31G4 | |
Programmable Touch Panel, Dual Ethernet, WLAN, Bluetooth, proximity sensor, temperature and humidity sensor, illuminance sensor, IR receiver, BACnet, 61499, black front, black enclosure (expected availability: Q1 2025) | |
Start quote request Documentation and Software | |
LPAD7-41G2 | |
Programmable Touch Panel, Dual Ethernet, WLAN, Bluetooth, proximity sensor, temperature and humidity sensor, illuminance sensor, IR receiver, BACnet, 61499, SIP client support, black front | |
Start quote request Documentation and Software | |
3D View | |
4463887877a447f88ba20816796c8446 | |
LPAD7-41G3 | |
Programmable Touch Panel, Dual Ethernet, WLAN, Bluetooth, proximity sensor, temperature and humidity sensor, illuminance sensor, IR receiver, BACnet, 61499, SIP client support, white front | |
Start quote request Documentation and Software | |
3D View | |
a0f915e0ac1d49c396bf7c821fa32c79 | |
LPAD7-41G4 | |
Programmable Touch Panel, Dual Ethernet, WLAN, Bluetooth, proximity sensor, temperature and humidity sensor, illuminance sensor, IR receiver, BACnet, 61499, SIP client support, black front, black enclosure (expected availability: Q1 2025) | |
Start quote request Documentation and Software | |
L-STUDIO | |
Development and integration platform for programmable LOYTEC controllers | |
Start quote request Documentation and Software | |
LPAD7-SOCKET0 | |
Mounting socket | |
Start quote request Documentation and Software | |
3D View | |
3edd8e6b108d4234916a8d20798002b0 | |
LPAD7-SOCKET0-B | |
Mounting socket (black) | |
Start quote request Documentation and Software | |
3D View | |
3edd8e6b108d4234916a8d20798002b0 | |
LPAD7-SOCKET1 | |
Mounting Socket, 24 V AC/DC input, 6 x relays 2 A 24 V, 7 x universal I/O (IO), 1 x RS-485 interface | |
Start quote request Documentation and Software | |
3D View | |
83d46d95e701446b905c027d725929c4 | |
LPAD7-SOCKET1-B | |
Mounting Socket, 24 V AC/DC input, 6 x relays 2 A 24 V, 7 x universal I/O (IO), 1 x RS-485 interface, black | |
Start quote request Documentation and Software | |
3D View | |
83d46d95e701446b905c027d725929c4 | |
LPAD7-SOCKET2 | |
Mounting Socket, 24 V AC/DC input, 1x LonMark TP/FT-10 interface, 1 x RS-485 interface | |
Start quote request Documentation and Software | |
3D View | |
12f04adf6c2a496e830bafbada784cc5 | |
LPAD7-SOCKET2-B | |
Mounting Socket, 24 V AC/DC input, 1x LonMark TP/FT-10 interface, 1 x RS-485 interface, black | |
Start quote request Documentation and Software | |
3D View | |
12f04adf6c2a496e830bafbada784cc5 | |
LPAD7-SOCKET3 | |
Mounting Socket, 24 V AC/DC input, 1x EnOcean 868 MHz, 1 x RS-485 interface | |
Start quote request Documentation and Software | |
3D View | |
626201bc45724a78a0df722fb48f483f | |
LPAD7-SOCKET3-B | |
Mounting Socket, 24 V AC/DC input, 1x EnOcean 868 MHz, 1 x RS-485 interface, black | |
Start quote request Documentation and Software | |
3D View | |
626201bc45724a78a0df722fb48f483f | |
LPAD7-SOCKET4 | |
Mounting Socket, 24 V AC/DC input, 1x EnOcean 902 MHz, 1 x RS-485 interface | |
Start quote request Documentation and Software | |
3D View | |
8d36acd6872e4a078ac0f76405f4d0f7 | |
LPAD7-SOCKET4-B | |
Mounting Socket, 24 V AC/DC input, 1x EnOcean 902 MHz, 1 x RS-485 interface, black | |
Start quote request Documentation and Software | |
3D View | |
8d36acd6872e4a078ac0f76405f4d0f7 | |
LPAD7-SOCKET5 | |
Mounting Socket, 24 V AC/ DC input | |
Start quote request Documentation and Software | |
3D View | |
9f53255cdbca48feb88a2aa120ec73f0 | |
LPAD7-SOCKET5-B | |
Mounting Socket, 24 V AC/ DC input, black | |
Start quote request Documentation and Software | |
3D View | |
9f53255cdbca48feb88a2aa120ec73f0 | |
LPAD7-STAND1 | |
Demo Stand for LPAD-7 | |
Start quote request Documentation and Software | |
LTRAIN-GRAPHICS | |
Graphical Design for L-VIS and L-WEB | |
Start quote request Documentation and Software | |
LTRAIN-LSTUDIO | |
L-STUDIO Training (3 days) | |
Start quote request Documentation and Software | |
LOYTRAIN-LROC-C | |
Class training - Learn how to implement L-ROC projects including project planning, programming and installation of all devices | |
Start quote request Documentation and Software | |
LOYTRAIN-LROC-O | |
Learn how to install, commission and parameterize L-ROC devices in an L-ROC projects (online training, free of charge) | |
Start quote request Documentation and Software | |
LOYBT-TEMP1 | |
Bluetooth Mesh temperature sensor (5 pieces per package) | |
Start quote request Documentation and Software | |
3D View | |
7ec607a8d3d04b06908f6a4bb05939b6 | |
LOYBT-TEMP2 | |
Bluetooth Mesh temperature and vibration sensor (5 pieces per package) | |
Start quote request Documentation and Software | |
3D View | |
7ec607a8d3d04b06908f6a4bb05939b6 |
