L-Term Network Terminator (BACnet MS/TP, Modbus RTU or RS-485)

L Term LT x4

Index

LOYTEC offers network terminators for RS‑485 channels (ANSI TIA/‌EIA‑485) such as BACnet MS/‌TP, Modbus RTU, or TP/RS485 (CEA‑709) in DIN rail housings.

L-Term LT-04 is a terminator for RS‑485 channels. In addition, LT-04 comes with a network access connector (RJ45) for a simple and reliable connection to the network e.g. for maintenance or analyzing the network locally.

The LT-B4 is a bus terminator for an RS‑485 channel with biasing circuit (failsafe biasing). This biasing circuit draws the level of the bus during standby mode (idle) to a safe value (logic “1”). The LT-B4 needs a power supply of 24 V AC or 24 V DC.

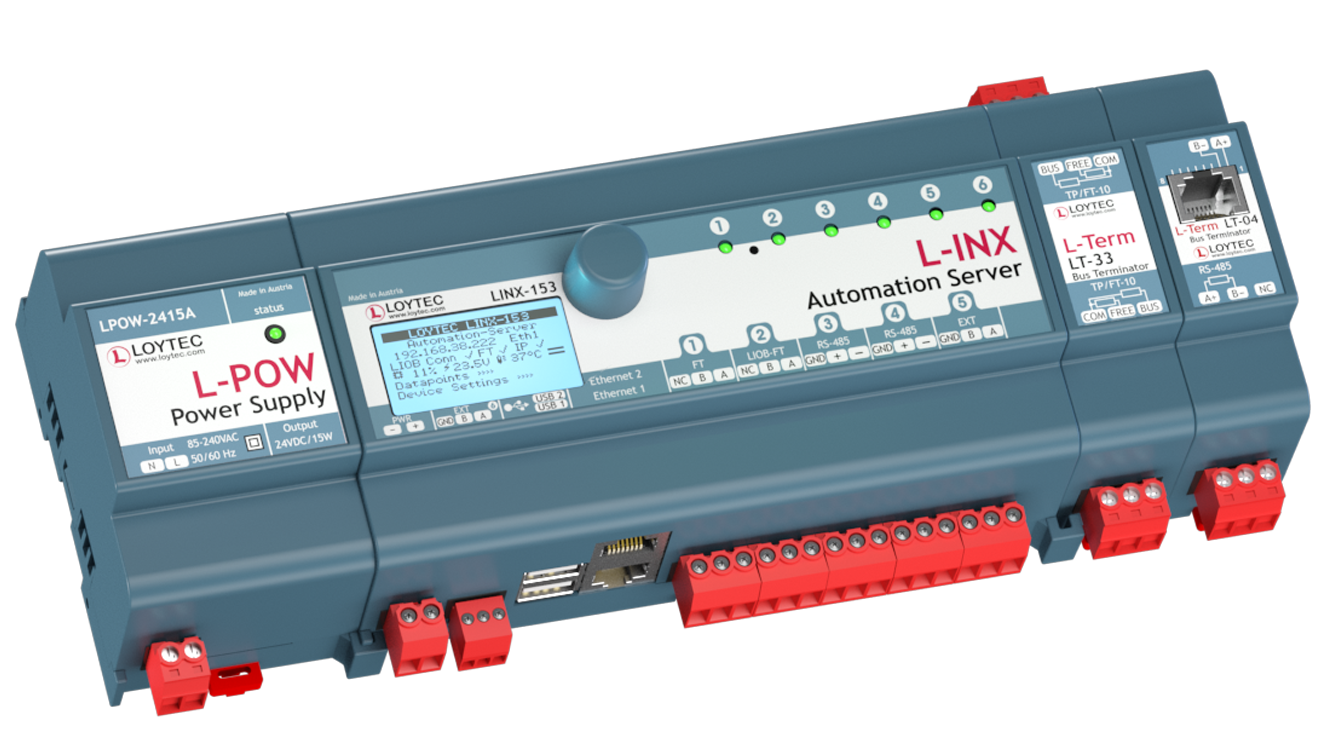

LPOW LINX 150 LT 33



L-Term Network Terminator (BACnet MS/TP, Modbus RTU or RS-485) Products


LT-04


Network terminator for 1 x RS‑485 (bus topology, ANSI TIA/EIA-485), 1 x Network Access Connector RJ45

Add this product to the Request for Quote
Related documents and software for LT-04
3D View for LT-04

LT-B4
LT-B4

Network terminator, 1 x RS‑485 (bus topology, ANSI TIA/EIA-485) with biasing circuit (failsafe biasing)

Add this product to the Request for Quote
Related documents and software for LT-B4
3D View for LT-B4
