The LIOB-15x Modules are LonMark certified and communicate over TP/FT-10 in the LonMark System. They provide up to 512 address table entries (ECS mode) which eliminates all binding restrictions.

LIOB-FT Mode

The LIOB-15x Modules can be switched to LIOB-FT mode using manual local operation. In LIOB-FT mode, the LIOB-15x Modules extend L-INX Automation Servers and L-ROC Room Controllers with physical inputs and outputs via plug and play.

Local Operation and Override

All L-IOB I/O Modules are equipped with an LCD display (128x64) with backlight and jog dial for manual local operation. Device and data point information is displayed in text form and via graphical symbols.

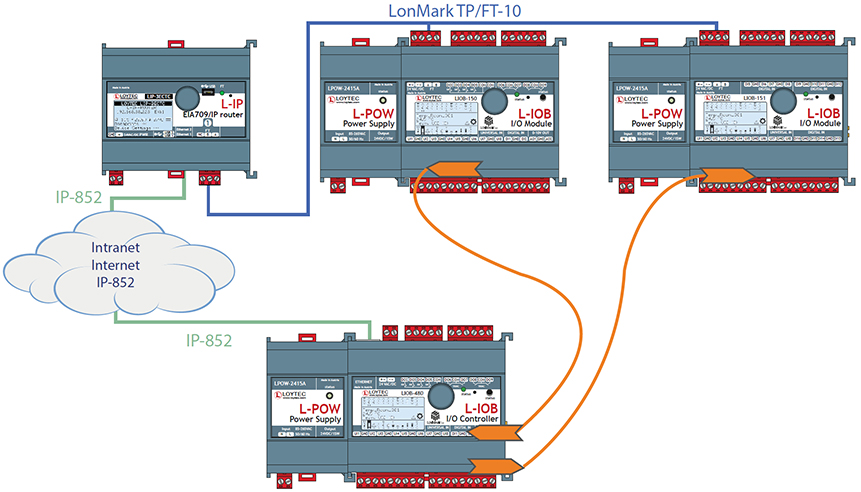

LIOB-150_Overview

LIOB-FT I/O Modules LonMark Products

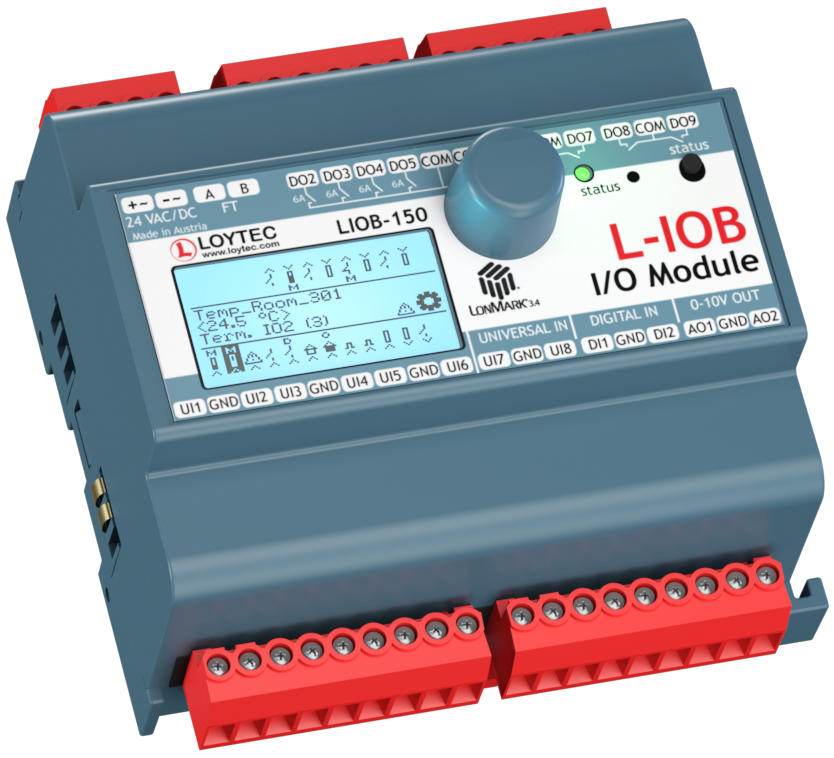

LIOB-150
LIOB-150

LIOB-FT I/O Module: 8 UI, 2 DI, 2 AO, 8 DO (4 x Relay 6 A, 4 x Triac 0.5 A)

Add this product to the Request for Quote
Related documents and software for LIOB-150
3D View for LIOB-150

LIOB-151
LIOB-151

LIOB-FT I/O Module: 8 UI, 12 DI

Add this product to the Request for Quote
Related documents and software for LIOB-151
3D View for LIOB-151

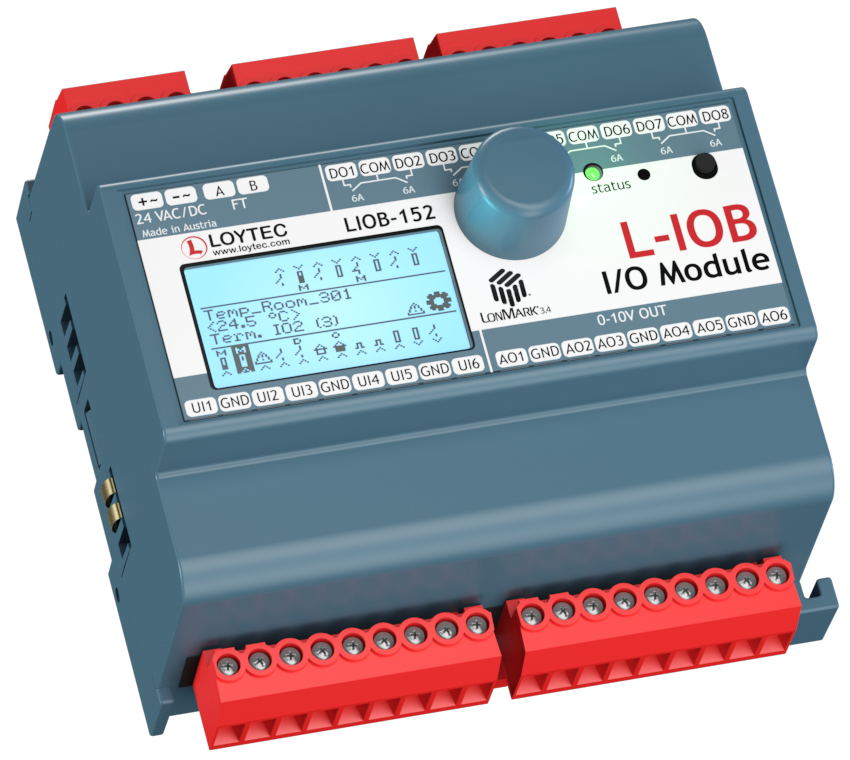

LIOB-152
LIOB-152

LIOB-FT I/O Module: 6 UI, 6 AO, 8 DO (8 x Relay 6 A)

Add this product to the Request for Quote
Related documents and software for LIOB-152
3D View for LIOB-152

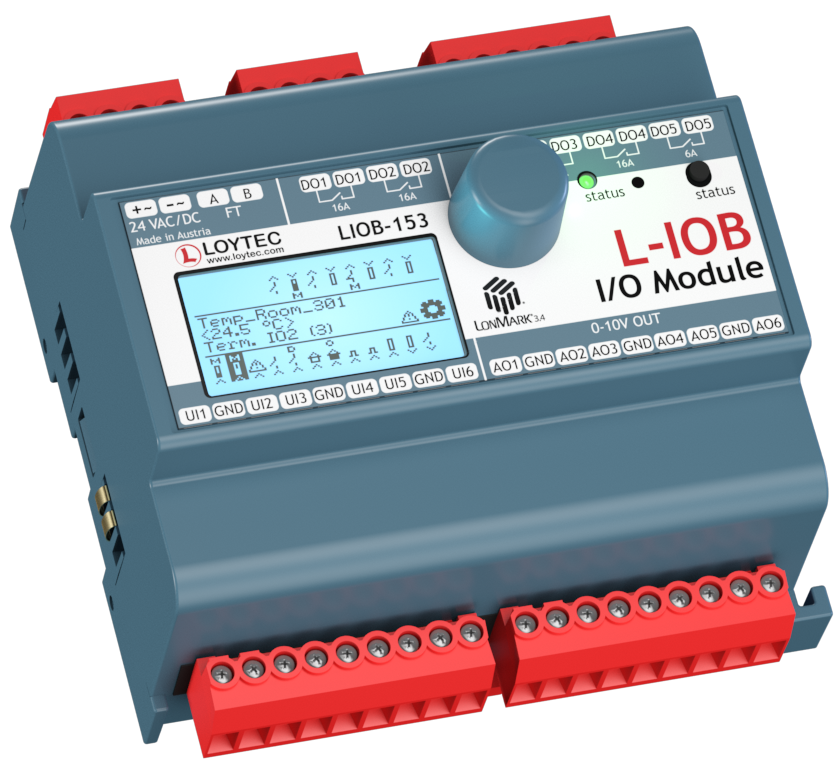

LIOB-153
LIOB-153

LIOB-FT I/O Module: 6 UI, 6 AO, 5 DO (4 x Relay 16 A, 1 x Relay 6 A)

Add this product to the Request for Quote
Related documents and software for LIOB-153
3D View for LIOB-153

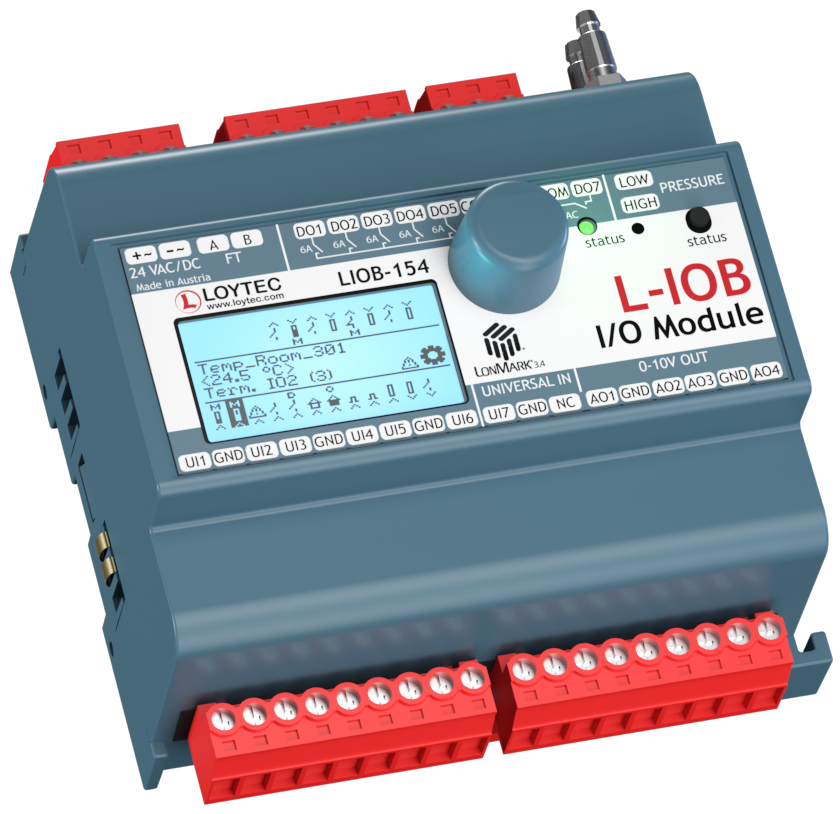

LIOB-154
LIOB-154

LIOB-FT I/O Module: 7 UI, 4 AO, 7 DO (5 x Relay 6 A, 2 x Triac 0.5 A), 1 Pressure Sensor

Add this product to the Request for Quote
Related documents and software for LIOB-154
3D View for LIOB-154

LPOW-2415A
LPOW-2415A

LIOB-Connect Power Supply, 24 VDC, 15 W

Add this product to the Request for Quote
Related documents and software for LPOW-2415A
3D View for LPOW-2415A

LPOW-2415B
LPOW-2415B

Power supply unit with power connector 24 VDC, 15 W

Add this product to the Request for Quote
Related documents and software for LPOW-2415B
3D View for LPOW-2415B

L-TEMP2
L-TEMP2

External temperature sensor (NTC10K) for use with L-IOB Universal Inputs

Add this product to the Request for Quote
Related documents and software for L-TEMP2
