LIOB-IP852 I/O Modules LonMark

CEA-709Ethernet (Ethernet Switch)LIOB-IPLocal Manual OperationVNC (Virtual Network Computing)Web Server for Device ConfigurationBackup / RestoreLocal I/OsLWEB-900 Integrated Building Management SystemLonMark-certified ProductUL Recognized Product

Index

The LIOB-45x Modules are LonMark certified and communicate over Ethernet/IP-852 in the LonMark System. They provide up to 512 address table entries (ECS mode) which eliminates all binding restrictions.

LonMark IP-852 Channel over Ethernet

The LIOB-45x I/O Modules are equipped with two Ethernet ports including a built-in Ethernet switch. This allows for building a daisy chained line topology of up to 20 devices, which reduces costs for network installation. Dual Ethernet port devices also allow the setup of a redundant Ethernet installation (ring topology), which increases reliability. The redundant Ethernet topology is enabled by the Rapid Spanning Tree Protocol (RSTP), which is supported by most managed switches.

The LIOB-45x Modules are equipped with a Web interface to query the device status. The local display can be accessed via VNC.

LIOB-IP Mode

The LIOB-45x Modules can be switched to LIOB-IP mode using manual local operation. In LIOB-IP mode, the LIOB-45x Modules extend L-INX Automation Servers, LIOB-IP852 I/O Controllers, and L-ROC Room Controllers with physical inputs and outputs via plug and play.

Local Operation and Override

All L-IOB I/O Modules are equipped with an LCD display (128x64) with backlight and jog dial for manual local operation. Device and data point information is displayed in text form and via graphical symbols.

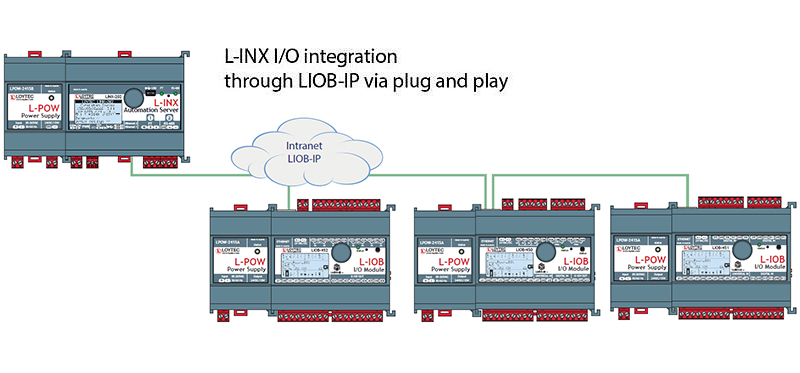

L-INX I/O Integration through LIOB-IP via Plug 'n Play

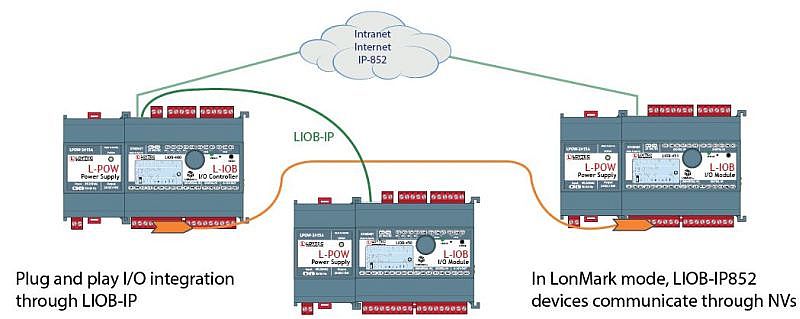

Plug and play I/O integration through LIOB-IP

LIOB-IP852 I/O Modules LonMark Products

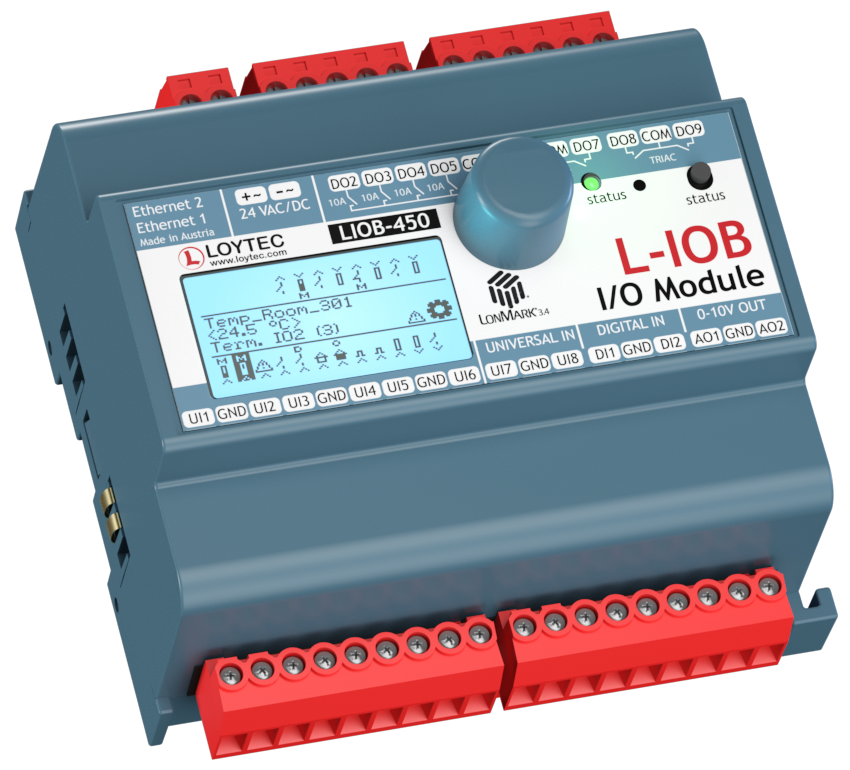

LIOB-450
LIOB-450

LIOB-IP852 I/O Module: 8 UI, 2 DI, 2 AO, 8 DO (4 x Relay 6 A, 4 x Triac 0.5 A)

Add this product to the Request for Quote
Related documents and software for LIOB-450
3D View for LIOB-450

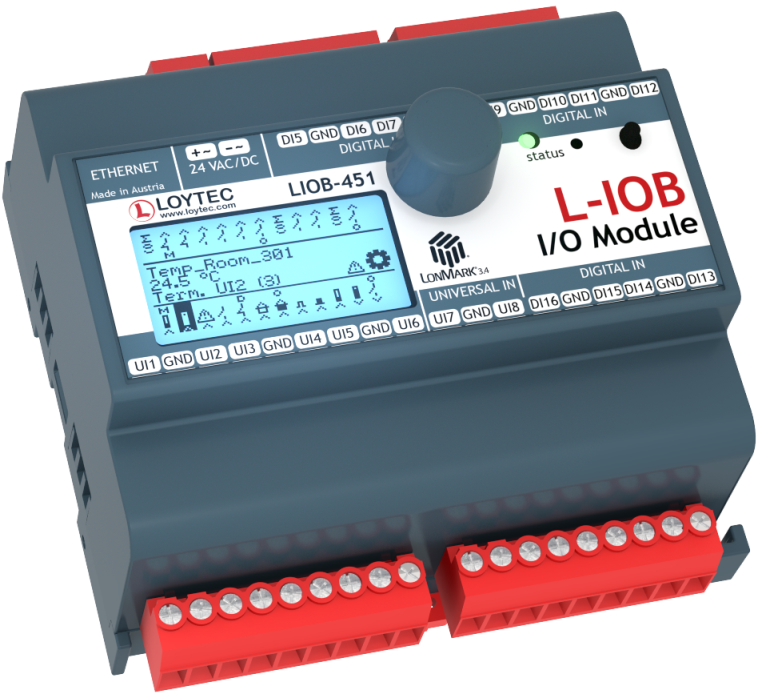

LIOB-451
LIOB-451

LIOB-IP852 I/O Module: 8 UI, 12 DI

Add this product to the Request for Quote
Related documents and software for LIOB-451
3D View for LIOB-451

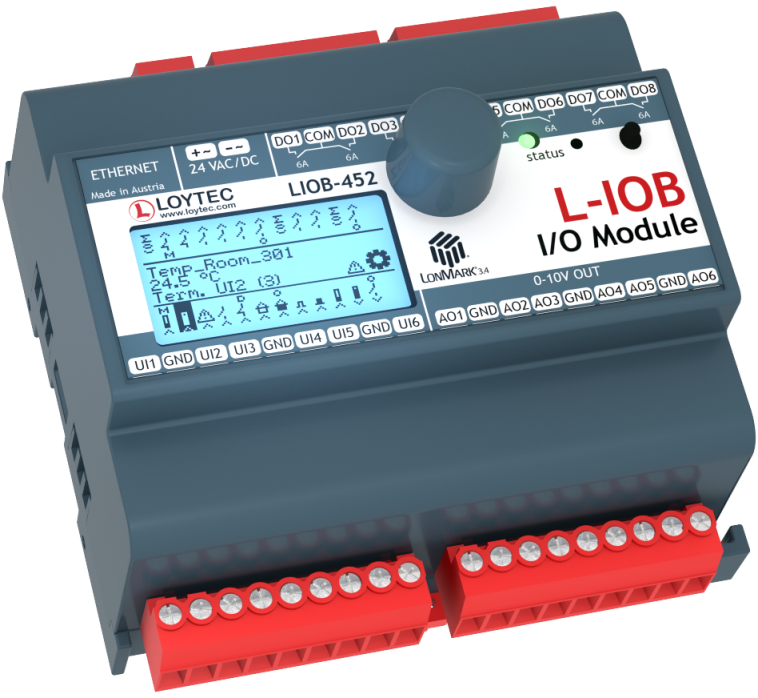

LIOB-452
LIOB-452

LIOB-IP852 I/O Module: 6 UI, 6 AO, 8 DO (8 x Relay 6 A)

Add this product to the Request for Quote
Related documents and software for LIOB-452
3D View for LIOB-452

LIOB-453
LIOB-453

LIOB-IP852 I/O Module: 6 UI, 6 AO, 5 DO (4 x Relay 16 A, 1 x Relay 6 A)

Add this product to the Request for Quote
Related documents and software for LIOB-453
3D View for LIOB-453

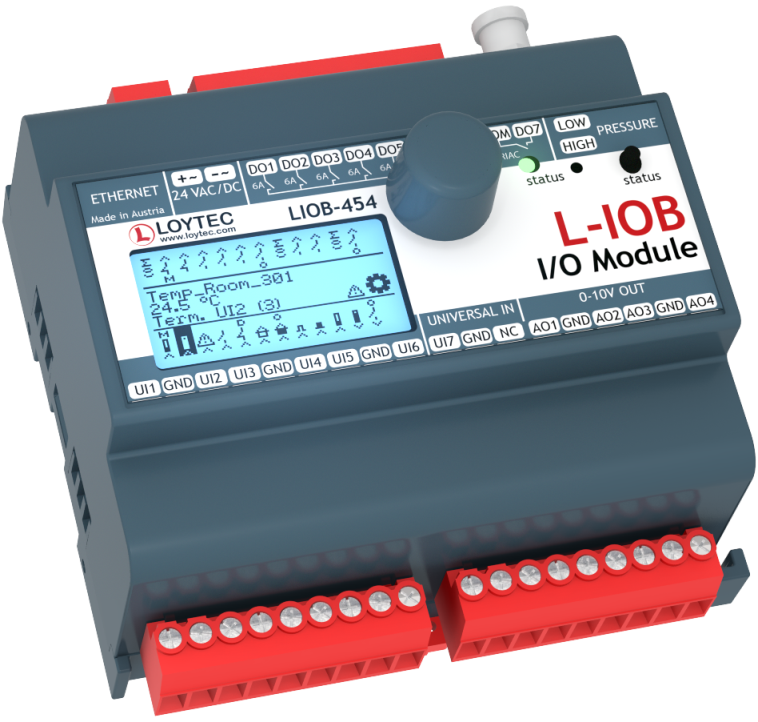

LIOB-454
LIOB-454

LIOB-IP852 I/O Module: 7 UI, 4 AO, 7 DO (5 x Relay 6 A, 2 x Triac 0.5 A), 1 Pressure Sensor

Add this product to the Request for Quote
Related documents and software for LIOB-454
3D View for LIOB-454

LPOW-2415A
LPOW-2415A

LIOB-Connect Power Supply, 24 VDC, 15 W

Add this product to the Request for Quote
Related documents and software for LPOW-2415A
3D View for LPOW-2415A

LPOW-2415B
LPOW-2415B

Power supply unit with power connector 24 VDC, 15 W

Add this product to the Request for Quote
Related documents and software for LPOW-2415B
3D View for LPOW-2415B

L-TEMP2
L-TEMP2

External temperature sensor (NTC10K) for use with L-IOB Universal Inputs

Add this product to the Request for Quote
Related documents and software for L-TEMP2
