L-VIS Touch Panel Room Edition for CEA-709
Related Links
|

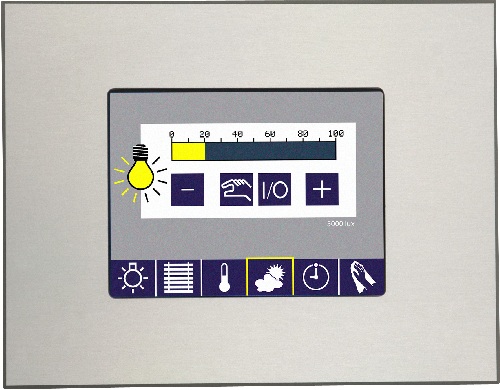

The LVIS-100-RE Room Edition is the ideal solution for room operation of CEA-709-based room control systems (LonMark Systems) via touch panel. All control functions are processed by the room control system and controlled via the L-VIS Room Edition. The LVIS-100-RE contains a predefined, static network variable interface, which cannot be changed.
|
|
Light Control:
The light control functions provide control for one or two groups of light. The current state of lamps is displayed on the touch screen. If a constant light controller is used, the constant light auto mode can be enabled.
Sunblind Control:
A single sunblind can be controlled to move up, down or stop. The current position of the sunblind is shown on the display. It is also possible to activate/deactivate the automatic mode of the sunblinds. The sunblind move can be stopped or set in auto mode, too. A specific sunblind position can also be set by directly touching the window graphic.
HVAC Control:
The HVAC control displays the current room temperature, which is received from the room temperature input network variable. For the fan speed, the modes 'Auto', 'Off', 'Stage 1', Stage 2 and 'Stage 3' can be selected. If a window is open, this has influence on the HVAC Control and the current status is shown on the display.
The data from an external weather station is displayed on a seperate page. These functiones are included: outdoor temperature, wind speed, relative humidity, input of a rain sensor, out- and indoor light.
Page Configuration with a Software Tool
Immediately after enabling LVIS-100-RE the implemented graphic abilities of the unit can be adjusted via the touch panel display according to the current room conditions. For these adjustments no use software tool is necessary.
Example of enabling a second light control:
Example of disabling sunblind control:
LVIS-100-RE provides a static NV interface for easy integration into a LonMark System. LVIS-100-RE is compatible with a variety of existing room controllers from different manufacturers. If more flexibility is demanded by the application, it is recommended to utilize the LVIS-3E100 Touch Panel.
Features:
- TFT touch display (320x240) with dimmable backlight
- Anodized aluminum front frame
- Flush-mounting in combination with the mounting frame LVIS-FRAME1
- External temperature sensor L-TEMP1 (optional) and input for external light switch
- Fixed NV interface for an easy handling
- Integrated graphical pages for room operation
- Graphical pages may be configured with the L-VIS Configuration Tool
- Remote Network Interface (RNI) with 2 MNI devices
- Integrated VNC Server
- Compliant with CEA-709, CEA-852, ISO/IEC 14908 standard (LonMark Systems)
Dimensions (in mm):
- LVIS-100-RE (5.7"): W=210, H=164, D=60
L-VIS Touch Panel Room Edition for CEA-709 | |
LVIS-100-RE | |
 | CEA-709 Touch Panel "Room Edition" with 5.7" display and built-in Remote Network Interface (RNI) |
 Add this product to the Request for Quote Related documents and software for LVIS-100-RE | |

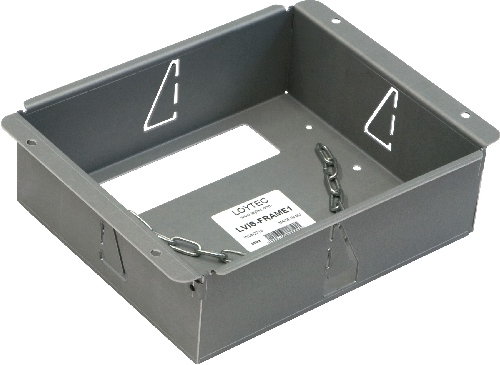

LVIS-FRAME1 | |
 | Mounting frame for 5.7" Touch Panels |
| Add this product to the Request for Quote | |
