LINX-100 Automation Server CEA-709
The L-INX Automation Server LINX-100 and LINX-101 are used for networking and managing distributed real estate and buildings of any size.
L-INX Servers offer a wide variety of functions that can be combined in any order. The support of standardized communication protocols (CEA-709, OPC, M-Bus, Modbus) makes them multi-faceted for use in open building management systems.
The L-INX Automation Servers have automation functions for a comprehensive alarming, scheduling, and trending. They feature an integrated OPC XML-DA server and the ability to host customized pages with dynamic content using standard Web technologies.
Different Automation Servers for integrating in LonMark® systems (LINX-100 and LINX-101) are available. Communication is available on IP-852 (Ethernet) or a twisted-pair channel TP/FT-10.
CEA-709 (LonMark®, DIN EN 14908, ISO/IEC 14908)
| L-INX Type | Remote Network Interface | Router IP-852 to TP/FT-10 |
|---|---|---|
| LINX-100 |
 |
 |
| LINX-101 |
|
|
L-INX Automation Server for integrating in BACnet® networks see LINX-200 and LINX-201.
A free configuration tool is available to configure the L-INX Automation Server LINX-100 and LINX-101. The configuration tool offers a consistent philosophy regarding the handling and operation of the different types of Automation Server and communication technologies (see Data Point Manager under Additional Information for details).
Common Features:
- Hosts customized pages with dynamic content displayed by LWEB-800 (.NET application)
- Supports alarming, scheduling, and trending (AST™)
- E-mail notification
- Embedded OPC XML-DA server fully compliant with the OPC XML-DA standard
- Supports up to 2000 OPC data points
- Built-in Web server for device configuration
- SNTP support for time synchronization
- Built-in communication test
- OPC status and activity LED
- Network statistics information accessible through OPC data points
- M-Bus Master to integrate M-Bus devices according to EN 13757-3
- Modbus Master to integrate Modbus devices (TCP, RTU)
- Physical inputs and outputs with LIOB-FT I/O Modules & Controllers
- 12-35 VDC / 12-24 VAC supply voltage, typ. 3 Watt
- 107 x 100 x 65 (L x W x H in mm) i.e. 6 TE
- DIN-rail mountable
LINX-100 Automation Server CEA-709 | |
LINX-100 | |
 | CEA-709 Automation Server & Gateway, supports LWEB-800 Visualization, built-in Remote Network Interface (RNI) |
 Add this product to the Request for Quote Related documents and software for LINX-100 | |
LINX-101 | |
 | CEA-709 Automation Server & Gateway, supports LWEB-800 Visualization, built-in IP-852 Router |
| Add this product to the Request for Quote Related documents and software for LINX-101 | |
LOPC-BR800 | |
 | OPC-Bridge to connect OPC DA Clients (COM/DCOM) to OPC XML-DA Servers (L-INX and L-ROC) |
| Add this product to the Request for Quote Related documents and software for LOPC-BR800 | |
L-MBUS Converter | |

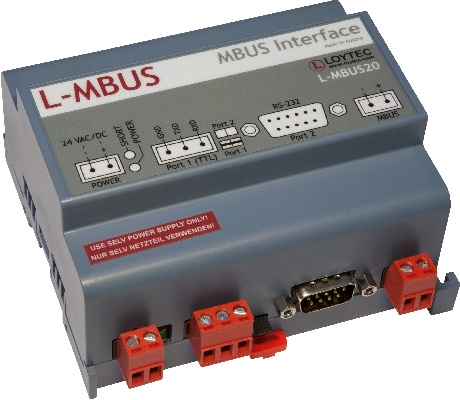

L-MBUS20 | |
 | M-Bus level converter for 20 M-Bus devices |
| Add this product to the Request for Quote Related documents and software for L-MBUS20 | |
L-MBUS80 | |
 | M-Bus level converter for 80 M-Bus devices |
| Add this product to the Request for Quote Related documents and software for L-MBUS80 | |
